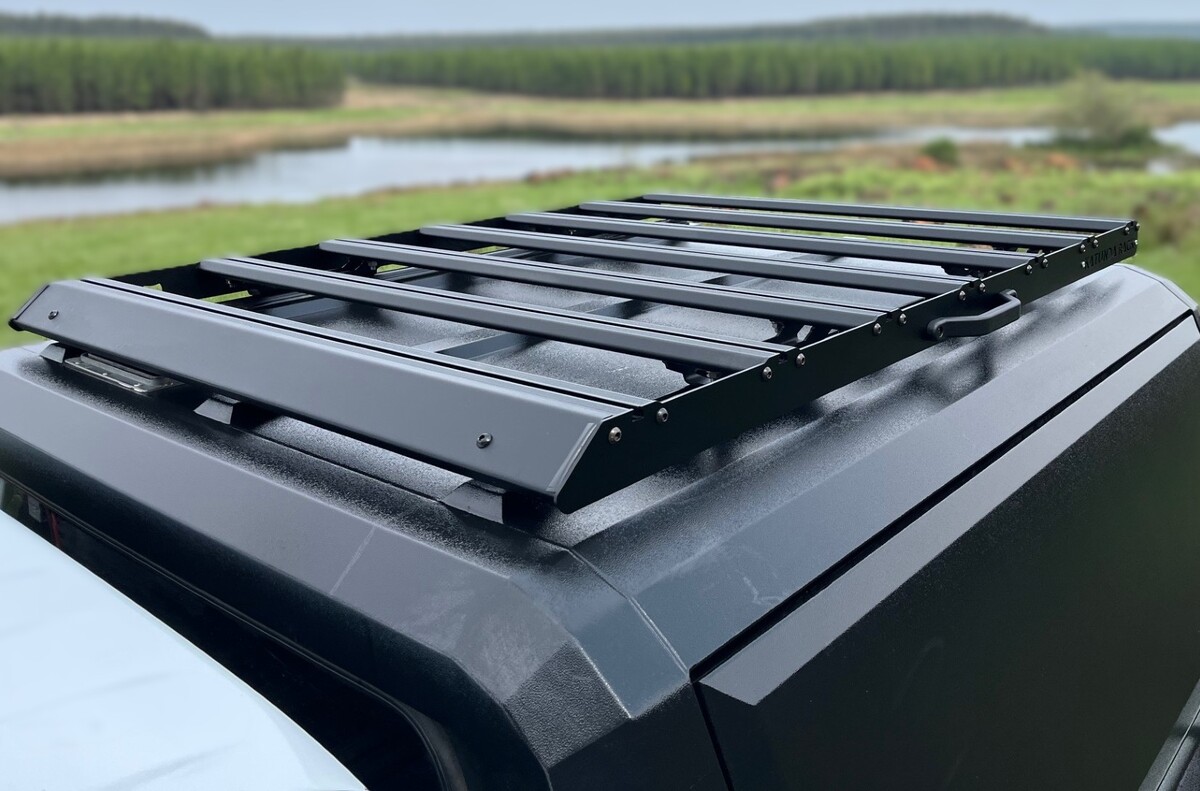

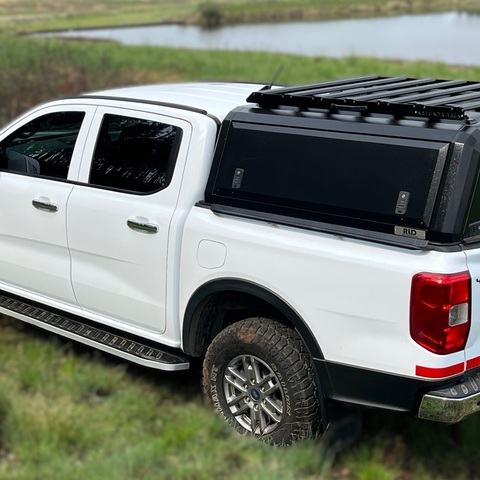

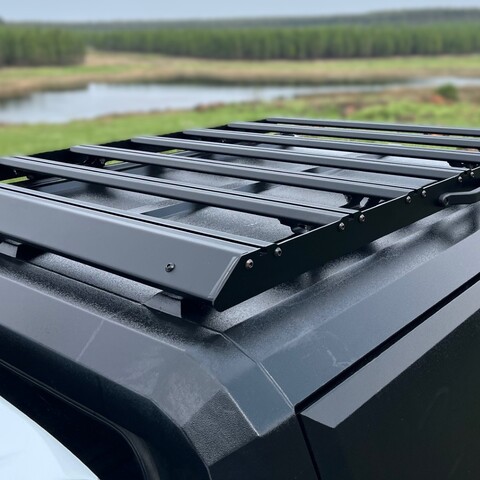

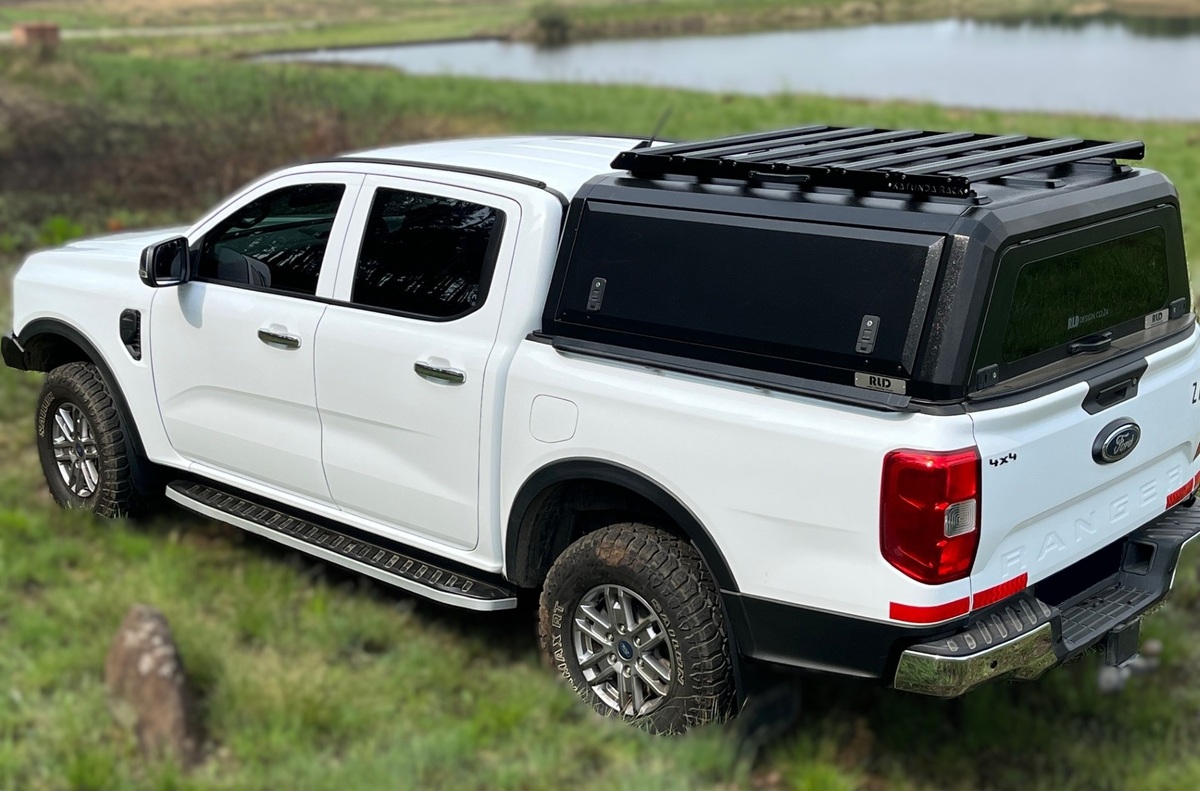

The Universal Canopy Roof Rack from KATUNDA RACK is designed to be easily shipped and assembled to fit bakkie canopies featuring mounting rails.
Unique design features and specifications include:

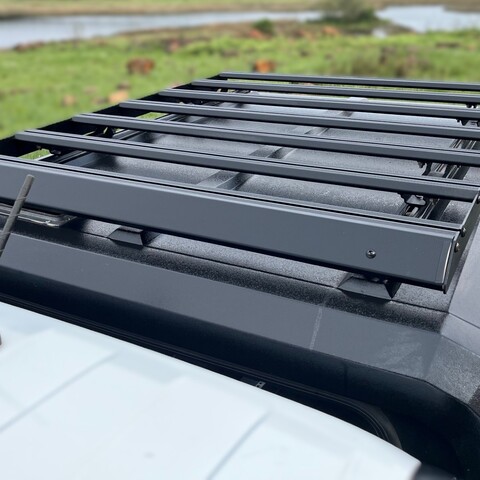

- High strength / low weight extruded aluminium alloy cross bars with trapezoidal cross section for enhanced load carrying capability.

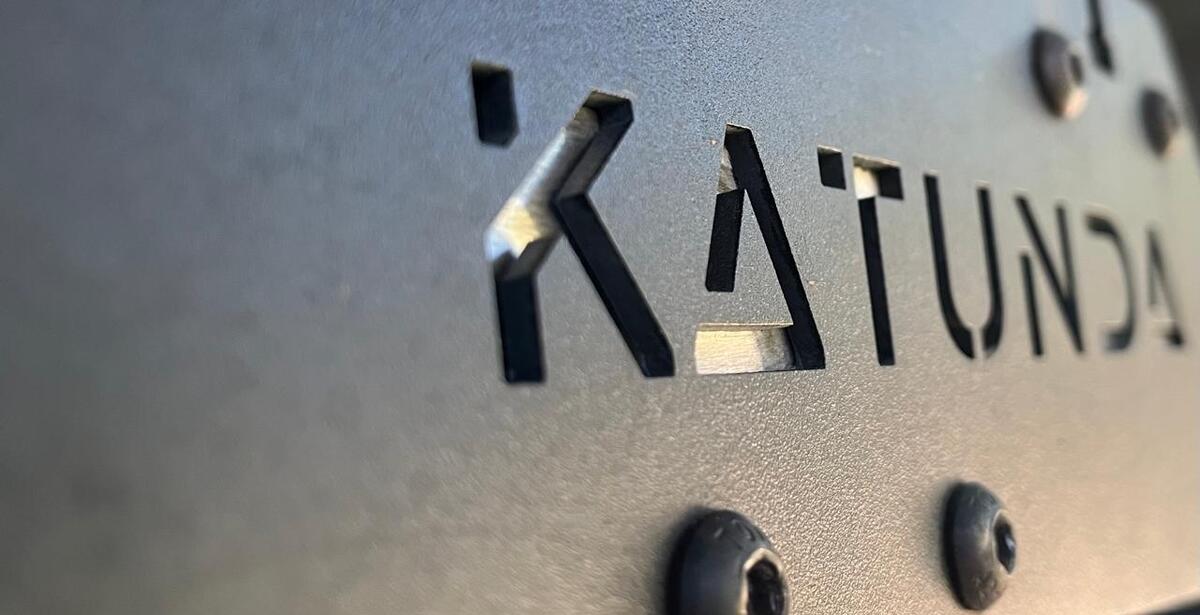

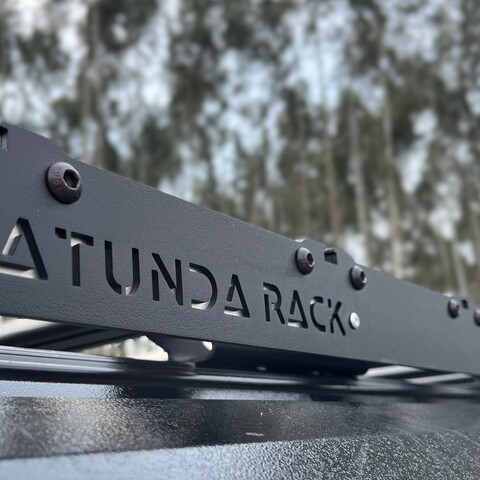

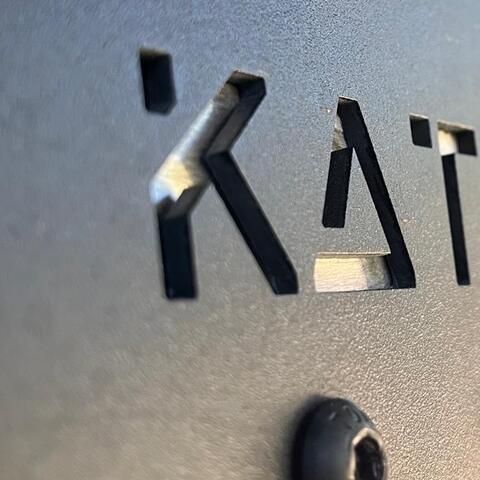

- Black powder coated 3mm stainless steel precision laser cut side plates.

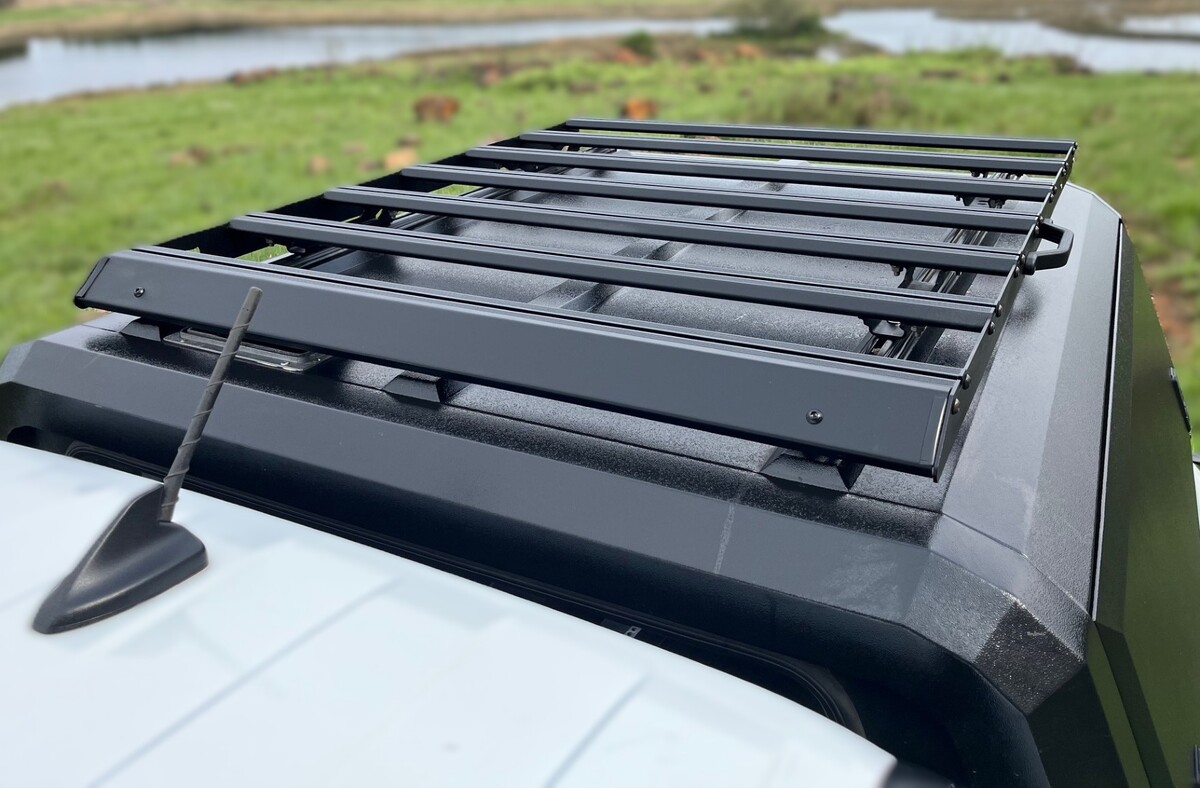

- Front mounted black powder coated stainless steel wind deflector makes the rack near silent.
- Side grab handles to allow easy access to the rack.

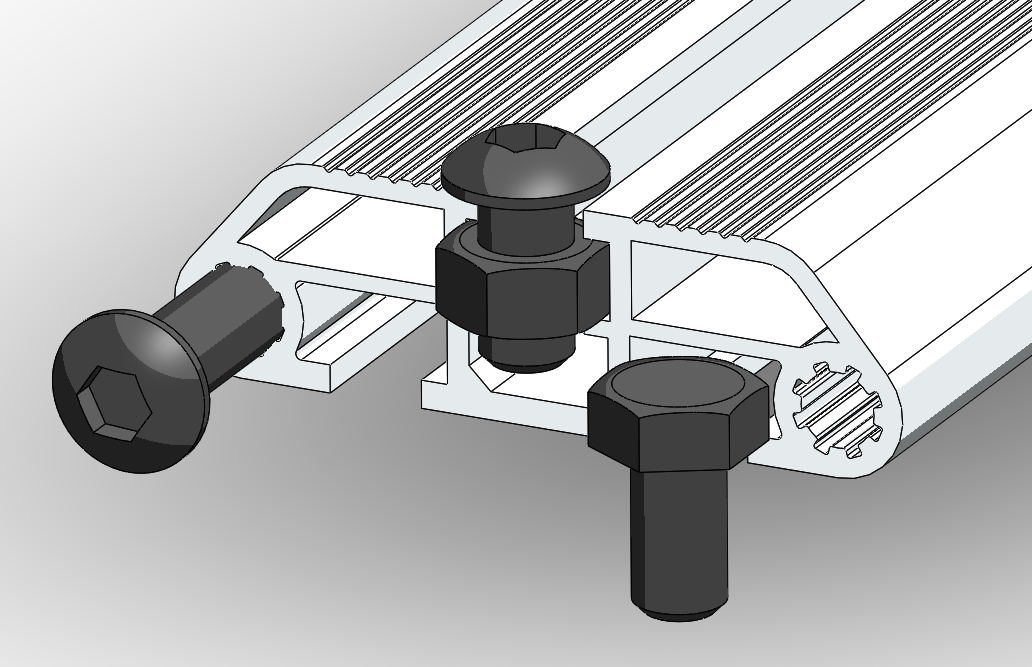

- M8 cross bar T-slots spaced 200mm apart make the rack compatible with KATUNDA RACK accessories as well as many other accessory manufacturers.
- Can be retrofitted to any canopy with M8 / M10 / M12 mounting rails.
- Max load capacity: 350kg (refer to vehicle load specifications to ensure you do not exceed your vehicle / canopy manufacturer load capacity).
- Ships in one 1500x200x150mm cardboard box.
- Simple assembly and installation in under 10 minutes, needing just a 5mm allen key and a 13mm spanner.
- Available in two widths dependent on canopy width. Please contact us if in doubt which width to select.
Rack
Width | Canopy
Size | Mass | Max Rail
Spacing |
| 1050mm | Double Cab | 14.9kg | 950mm |
| 1150mm | Double Cab | 15.7kg | 1050mm |
|
|
|
|
